Room Screen

Demonstration project — provided as an example of what the PixelRoot32 Game Engine can do. It is not a product: parts may be incomplete, experimental, or deliberately simplified to keep one idea in focus.

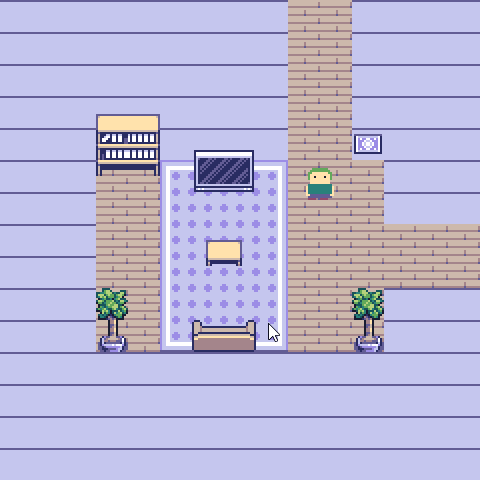

A 4-room layout exported by the Tilemap Editor: four 15x15 rooms in a 2x2 grid (each 240×240 at 16 px/tile). A 16×16 hero (idle + two-frame walk, up/down/left/right) walks the world freely and collides with the Items layer (the collision layer). Crossing a room boundary follows the room connection — the camera snaps to the target room and the player lands on its entry edge; an unconnected edge acts as a wall.

Language: C++17
Engine: gperez88/PixelRoot32-Game-Engine@^1.9.0
Environments: native, esp32dev
Category: Gameplay

Where the rooms come from

The graph is not hand-written in C++. src/assets/roomscreen_main_scene.h / .cpp hold the exported scene — tilemaps, palettes, and the room layer (tile-space rects plus connection slots) — and Scene::init() turns the room layer into a RoomGraph<4> with one call:

gameplay::buildRoomGraph(ROOMSCREEN_MAIN_SCENE_ROOM_LAYER, rooms_);

That keeps rects and connections in one place instead of spread across addRoom/connect calls that can drift out of sync with the map. See Tilemap Editor — Room Layer for the format.

Requirements (build flags)

Flag	Required	Notes
PIXELROOT32_ENABLE_GAMEPLAY_ROOM=1	Yes	Enables RoomGraph<N>
PIXELROOT32_ENABLE_AUDIO=1	No	Audio backend for SDL2/ESP32

Platforms

Environment	Display	Audio
native	SDL2 window, 240x240	none — the demo sets no audio flag
esp32dev	ST7789 240x240 over SPI — MOSI 23, SCLK 18, DC 2, RST 4, CS -1	none

Controls

• Up/Down/Left/Right arrow keys: move the player. Walking into a wall stops you; walking across an open room boundary transitions to the connected room.

Collision

The exported Items layer is the collision layer: its tiles carry TILE_SOLID where the player cannot walk. The player resolves that layer with the engine helper pixelroot32::physics::isWorldPixelSolid, which decodes the tile's 4bpp bitmap so a solid tile only blocks where its pixels are actually opaque — a tile whose bitmap has transparent "dead pixels" (palette index 0) lets the player walk through the gaps instead of treating the whole 16×16 cell as a wall.

The strategy is a compile-time toggle in src/GameConstants.h:

kCollisionMode	Behaviour
CollisionMode::WholeTile	Original behaviour: a TILE_SOLID tile blocks its entire cell; the bitmap is ignored.
CollisionMode::PerPixel	Per-pixel test: transparent pixels are walkable, no erosion.
CollisionMode::PerPixelEroded (default)	Per-pixel test with morphological erosion, so thin branches, dangling 1px protrusions and stray opaque pixels on irregular tiles (plants, tree canopies) don't snag the player.

PerPixelEroded uses kTileSolidErosionPx (default 1) as the erosion radius: a pixel counts as solid only if the whole (2*r+1)² square around it is opaque.

Player::canOccupy branches on kCollisionMode with if constexpr, so the unselected branches are discarded at compile time (zero runtime cost, and on ESP32 the unused helper is stripped by --gc-sections). The helper is stateless — no per-tile masks, no allocations — so RAM cost is 0 in every mode.

Build

From gameplay/room_screen:

pio run -e native
pio run -e esp32dev

Upload (ESP32)

pio run -e esp32dev --target upload

License

Source code: MIT.

Asset	Author	License	Source
Top-down interior tileset, baked into src/assets/roomscreen_main_scene.cpp by the Tilemap Editor exporter	AxulArt	CC BY 4.0	AxulArt's Basic Top-down Interior
Player sprites, 16x16, idle plus a two-frame walk in four directions, in src/assets/PlayerSprites.h	Gabriel Perez	CC0 1.0 (public domain)	Original work for this demo

The interior tiles are by AxulArt, used under CC BY 4.0 and re-encoded to the engine's 4bpp nibble-packed format. Attribution is required by that license, so keep this section with the demo if you copy the folder out.

The player sprites are original pixel art drawn for this demo and released into the public domain, so they carry no requirement of their own.

---

Source code: https://github.com/PixelRoot32-Game-Engine/PixelRoot32-Demo-Projects/tree/main/gameplay/room_screen
